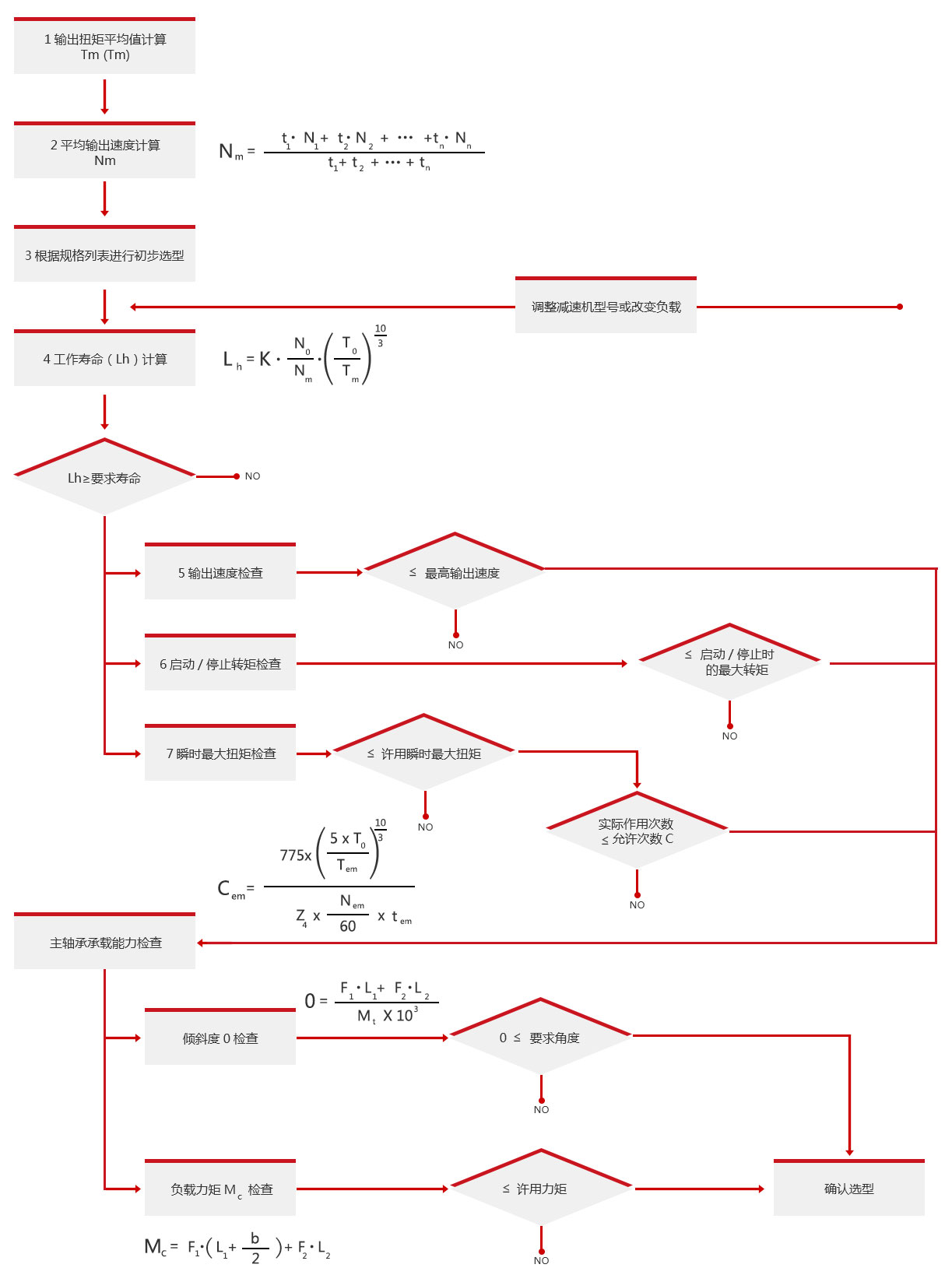

QXB减速机E、C系列选定流程
选型示例
| 启动时负载转矩 | T1=1OOONm | Acceleration torque |
| 稳定时负载转矩 | T2=500 Nm | Constant torque |
| 停止时负载转矩 | T3=800 Nm | Breaking torque |
| 瞬时最大转矩 | Tem=4000 Nm | Momentary max. torque |
| 启动时平均转速 | N1 =10rpm | Average acceleration input speed |
| 稳定时转速 | N2=15rpm | Constant input speed |
| 停止时平均转速 | N3=10 rpm | Average breaking input speed |
| 加速时间 | t1=0.2 sec. | Acceleration time |
| 稳定运转时间 | t2=0.5 sec. | Constant time |
| 减速时间 | t3=0.2 sec. | Breaking time |
| 径向载荷 | F1=1500N | Radial load |
| 到径向载荷作用点的距离 | L1=500 mm | Arm length to the radial load point |
| 轴向载荷 | F2=800 N | Axial load |
| 到轴向载荷作用点的距离 | L2=200 mm | Arm length to the axial load point |
| 针齿数 | Z4=40 | The number of pins |
计算平均输出转矩 T m /
计算平均输出转速 N m
根据 QXB 减速机额定表格暂定减速机 ： QXB 80E-121
QXB 80E-121 减速机额定数值
The rating date of QXB 80E-121
| 启动时负载转矩 | T1=1OOONm | Acceleration torque |
| 额定转矩 | 784 Nm | Rated torque |
| 最大输出转速 | 60 rpm | Max. output speed |
| 启动停止时的最大转矩 | 1960 Nm | Allowable acceleration/deceleration torque |
| 瞬时最大许用转矩 | 4312 Nm | Momentary max. allowable torque |
